BB30H Series Mechanical Seals DATE£º2013/7/5 15:11:05 HITS£º1560

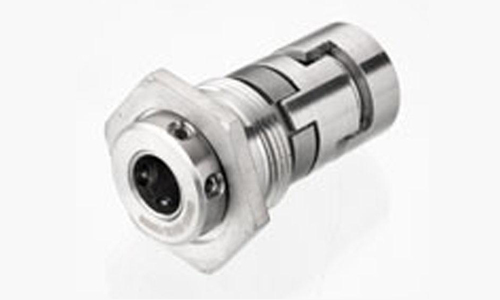

BB30H cartridge seal with screw to replace the grundfos seal style H.Ideal replacement for Grundfos Pump style MTR,CR/CNR 32,CR/CRN45,CR/CRN64,CR/CRN90.
Operating limits
Size:
Material:
Seal face: TC.Carbon.SiC
Rubber:NBR.EPDM.VITON
Metal parts:SS316,SS304

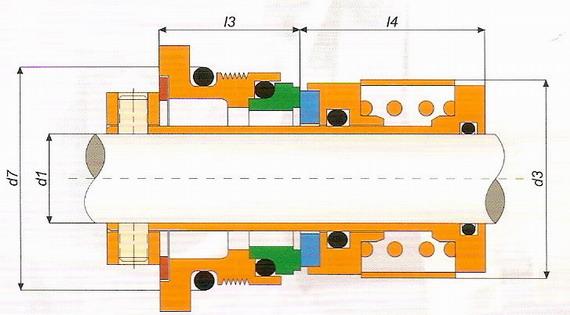

d1
d3
d7
l3
l4
mm
mm
mm
mm
mm
12
25.20
29.00
19.50
32.00
16
29.70
34.00
20.50
32.00
