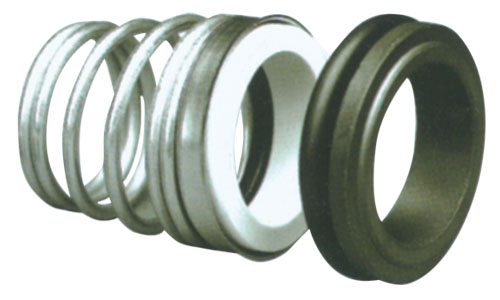

BB5 Series Mechanical Seal DATE£º2013/6/23 21:29:44 HITS£º2144
Characteristics:
Single spring seal
Conical spring
Single Direction
Unbalanced
Operating limits
D1=10-40mm
Pressure p=10bar
Speed v=20m/sec
Temperature t=-20+180oc
Material:
Rotary faces :ceramic SiC .TC
Sationary face :carbon .SiC.TC
Rubber :NBR.EPDM.VITON
Spring :SS304

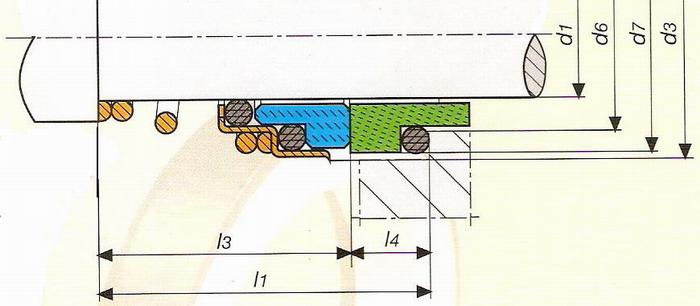

Metal partS :SS304d1
d3
l3
d6
d7
l4
l1
mm
mm
mm
mm
mm
mm
mm
10
19.50
15.00
14.00
18.10
5.50
20.50
11
22.50
18.00
16.50
20.60
5.50
23.50
12
22.50
18.00
16.50
20.60
5.50
23.50
13
24.50
22.00
19.00
23.10
6.00
28.00
14
24.50
22.00
19.00
23.10
6.00
28.00
15
29.00
22.00
21.00
26.90
7.00
29.00
16
29.00
23.00
21.00
26.90
7.00
30.00
17
29.00
23.00
21.00
26.90
7.00
30.00
18
32.50
24.00
25.00
30.90
8.00
32.00
19
32.50
25.00
25.00
30.90
8.00
33.00
20
32.50
25.00
25.00
30.90
8.00
33.00
22
37.50
25.00
30.00
35.40
8.00
33.00
24
37.50
27.00
30.00
35.40
8.00
35.00
25
40.00
27.00
33.00
38.20
8.50
35.50
28
46.00
29.00
38.00
43.30
9.00
38.00
30
46.00
30.00
38.00
43.30
9.00
39.00
32
46.00
30.00
38.00
43.30
9.00
39.00
33
48.00
30.00
45.00
53.50
11.50
41.50
35
50.00
39.00
45.00
53.50
11.50
50.50
38
56.00
39.00
52.00
60.50
11.50
50.50
40
58.00
39.00
52.00
60.50
11.50
50.50
