C4 seal seat DATE：2013/7/5 16:58:05 HITS：1293

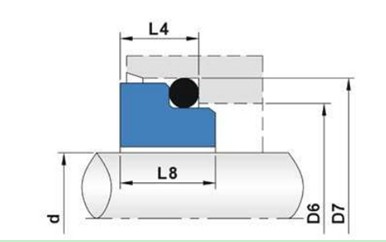

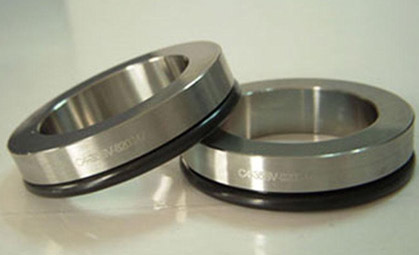

O-ring mounted seats,with Standard dimensionsMaterials :SIC,TC,Carbon,Ceramic,SSsize
d
D6
D7
L4
L8
size
d
D6
D7
L4
L8
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
10
10.00
15.50
19.20
6.60
7.50
43
43.00
53.30
62.00
12.00
13.20
12
12.00
17.50
21.60
5.60
6.50
45
45.00
53.30
64.00
11.60
12.80
14
14.00
20.50
24.60
5.60
6.50
48
48.00
59.70
68.40
11.60
12.80
15
15.00
20.50
24.60
6.60
7.50
50
50.00
60.80
69.30
11.60
12.80
16
16.00
22.00
28.00
7.50
8.50
53
53.00
63.80
72.30
12.30
13.50
18
18.00
24.00
30.00
8.00
9.00
55
55.00
66.50
75.40
13.30
14.50
20
20.00
29.50
35.00
7.50
8.50
58
58.00
69.50
78.40
13.30
14.50
22
22.00
29.50
35.00
7.50
8.50
60
60.00
71.50
80.40
13.30
14.50
24
24.00
32.00
38.00
7.50
8.50
63
63.00
74.50
83.40
13.30
14.20
25
25.00
32.00
38.00
7.50
8.50
65
65.00
76.50
85.40
13.00
14.20
26
26.00
34.00
40.00
8.00
9.00
68
68.00
82.70
91.50
13.70
14.90
28
28.00
36.00
42.00
9.00
10.00
70
70.00
83.00
92.00
13.00
14.20
30
30.00
39.20
45.00
10.50
11.50
75
75.00
90.20
99.00
14.00
15.20
32
32.00
42.20
48.00
10.50
11.50
80
80.00
95.20
104.00
15.00
16.20
33
33.00
44.20
50.00
11.00
12.00
85
85.00
100.20
109.00
14.80
16.00
35
35.00
46.20
52.00
11.00
12.00
90
90.00
105.20
114.00
14.80
16.00
38
38.00
49.20
55.00
10.30
11.30
95
95.00
111.60
120.30
15.80
17.00
40
40.00
52.20
58.00
10.80
11.80
100
100.00
114.50
123.30
15.80
17.00
42
42.00
53.30
62.00
12.00
13.20
