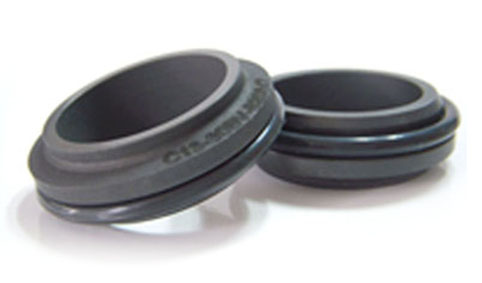

C13 seal seats DATE：2013/7/5 17:09:37 HITS：1340

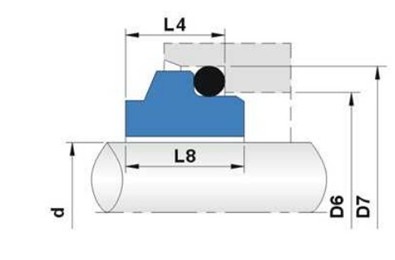

O-ring mounted seats,
with Standard dimension
Materials : A B
size
D
D6
D7
L4
L8
size
D
D6
D7
L4
L8
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
10
10
15.5
19.2
7.1
9
43
43
53.3
62
14.3
17
12
12
17.5
21.6
7.6
10
45
45
55.3
64
14.3
17
14
14
20.5
24.6
7.6
10
48
48
59.7
68.4
14.3
17
15
15
20.5
24.6
8.6
11
50
50
60.8
69.3
14.3
17
16
16
22
28
9
11.5
53
53
63.8
72.3
14.3
17
18
18
24
30
10
12.5
55
55
66.5
75.4
15.3
18
20
20
29.5
35
9.5
12.5
58
58
69.5
78.4
15.3
18
22
22
29.5
35
9.5
12.5
60
60
71.5
80.4
15.3
18
24
24
32
38
9.5
12.5
63
63
74.5
83.4
15.3
18
25
25
32
38
9.5
12.5
65
65
96.5
85.4
15.3
18
26
26
34
40
10
13
68
68
82.7
91.5
16
19
28
28
36
42
11
14
70
70
83
92
45.3
18
30
30
39.2
45
11
14
75
75
90.2
99
15.3
18
32
32
42.2
48
11
14
80
80
95.2
104
16.3
19
33
33
44.2
50
11.5
14.5
85
85
100.2
109
16.3
19
35
35
46.2
52
11.5
14.5
90
90
105.2
114
16.3
19
38
38
49.2
55
11.5
14.5
95
95
111.6
120.3
17.3
20
40
40
52.2
58
11.5
14.5
100
100
114.5
123.3
17.3
20
42
42
53.3
62
14.3
17
